The ultimate core for your modular steering wheel

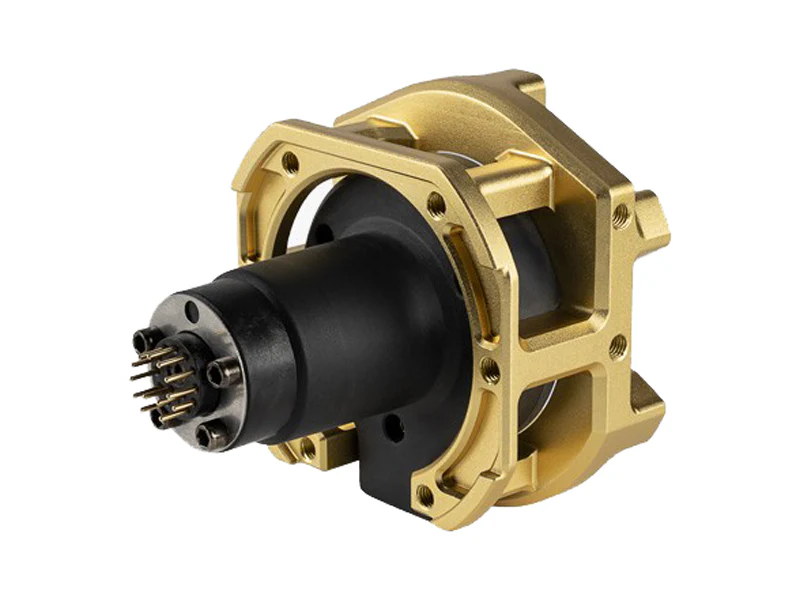

The Podium Hub is the premium core component for the Fanatec® modular steering wheel system.

The Podium Hub includes a QR2 Wheel-Side (ClubSport Quick Release Adapter)

ALUMINIUM MONOCOQUE

The space frame design surrounds the electronic components for the lightest possible weight. The central hub is created from a single piece of anodised aluminium for maximum strength.

HIGH-PERFORMANCE CENTRAL CORE

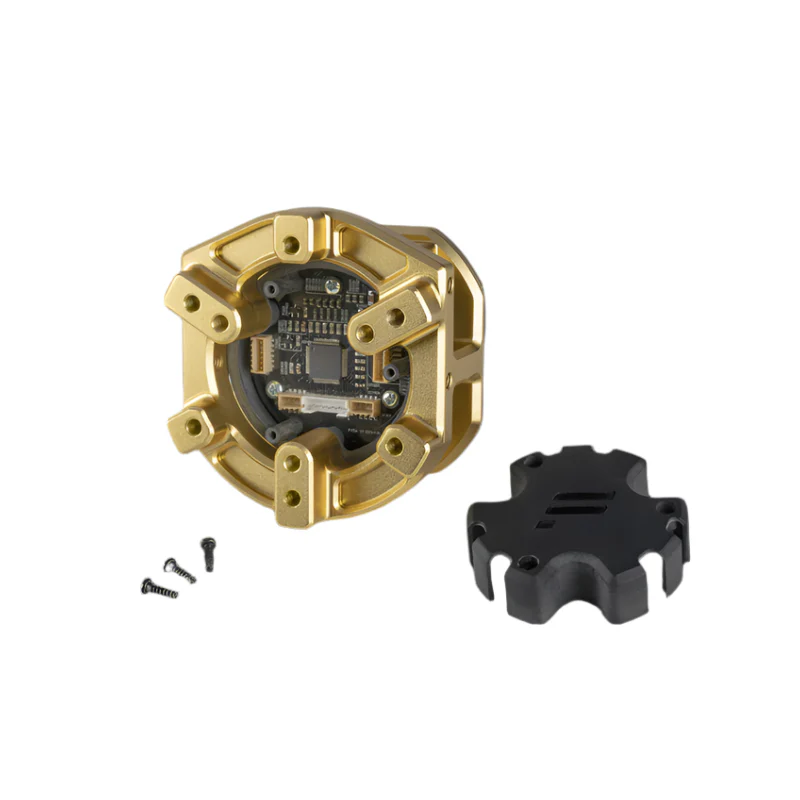

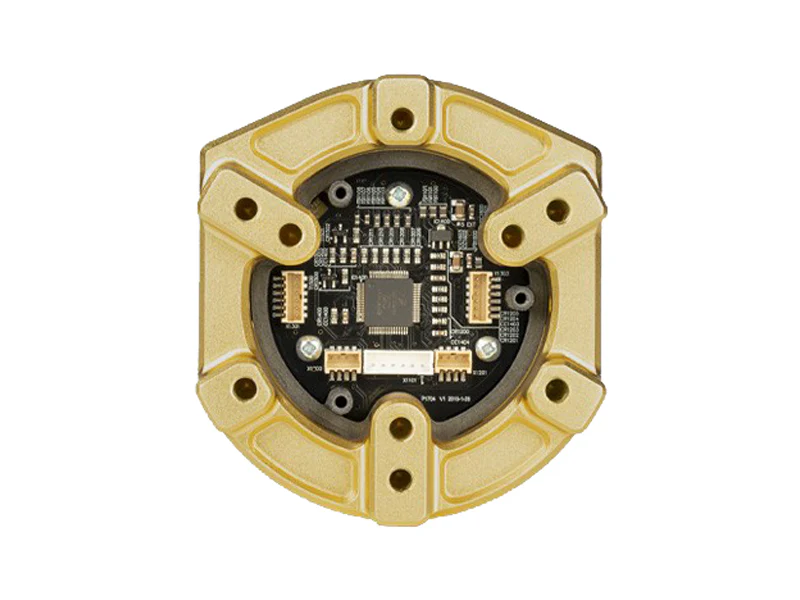

Integrating a dedicated ARM processor, the Podium Hub is low latency, firmware upgradeable, and supports 10 buttons and dual 16-bit resolution analogue inputs. Additional buttons, axes, and displays can be connected via DataPort-C.

CUSTOMISATION AND FLEXIBILITY

Use the Podium Hub to mount wheel rims from Fanatec and other manufacturers, or even full steering wheels. Easily upgrade and customise using Fanatec modular components

WHEEL RIM COMPATIBILITY

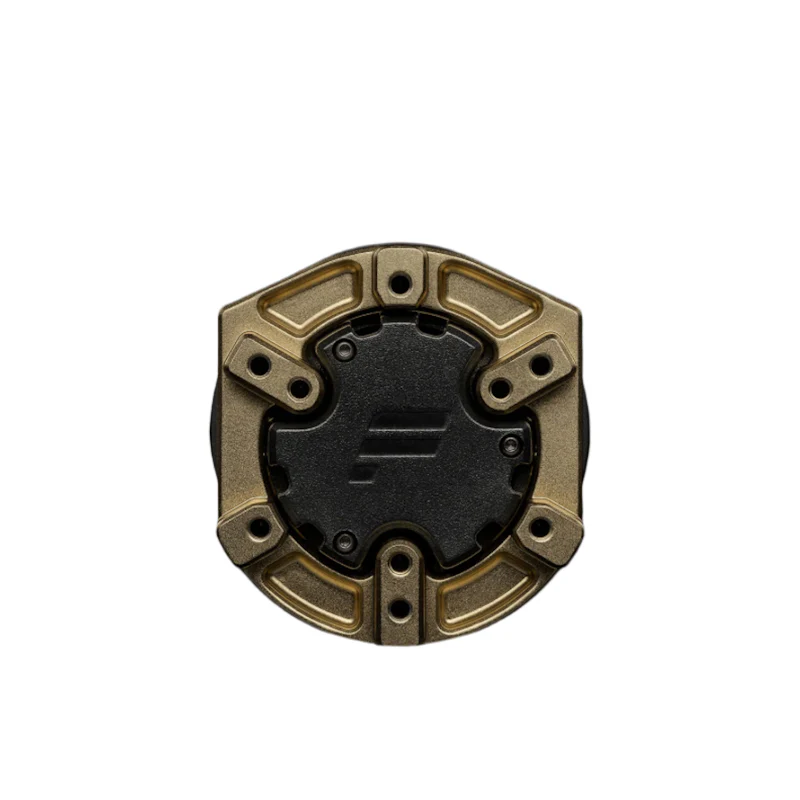

The Podium Hub features mounting holes for wheel rims using the 6x70mm or 3x50mm bolt pattern. It is possible to run third-party steering wheels on PC with USB cables as used on OSW Direct Drive for example.

SUPPORTS PODIUM SERIES MODULAR COMPONENTS

The Podium Hub contains connectors for the Podium Advanced Paddle Module, two Universal Hub button clusters, and a DataPort-C connector for attaching the Fanatec button or display modules.

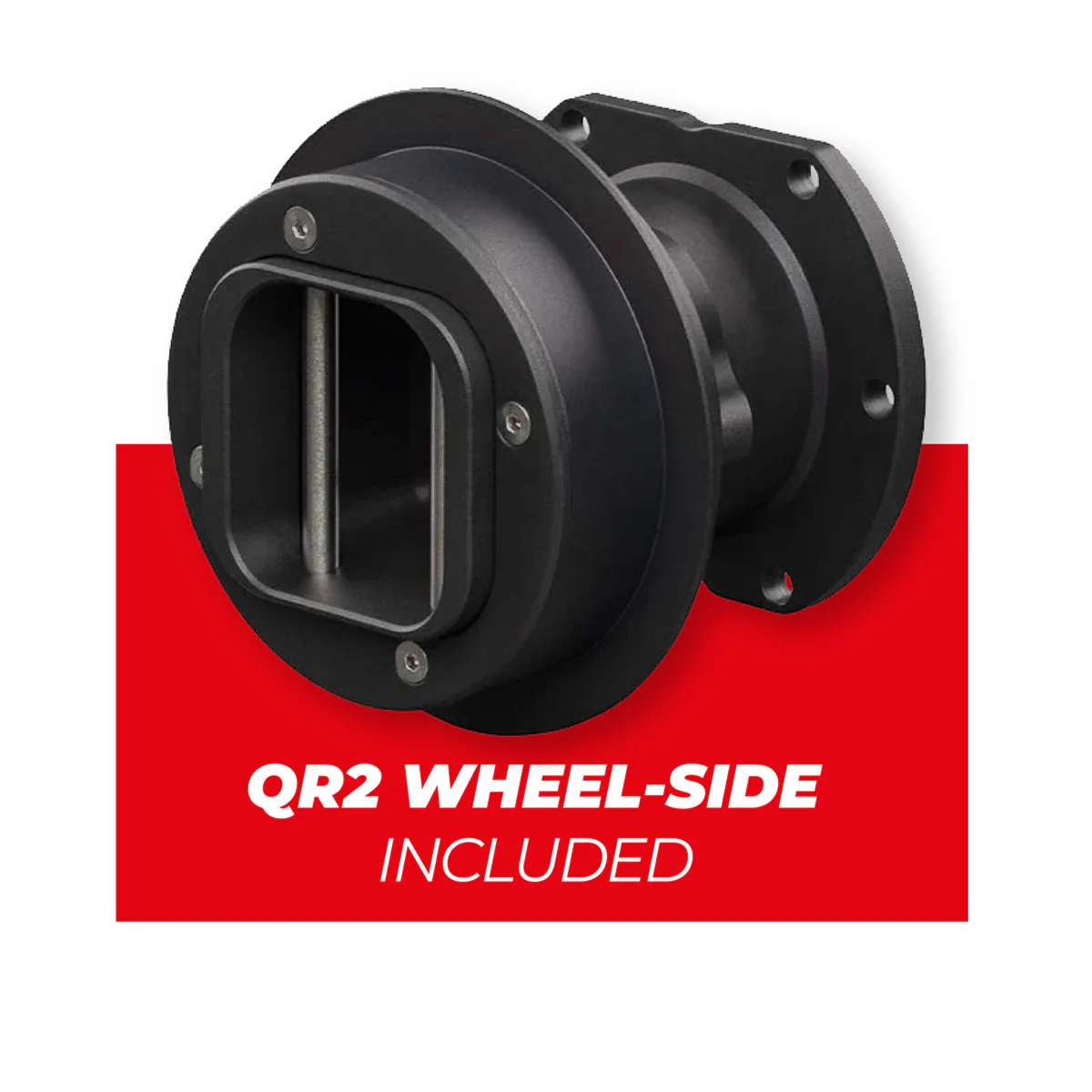

The included ClubSport Quick Release Adapter allows you to connect directly to Fanatec CSL, ClubSport, and Podium wheel bases.

Automotive Grade Quick Release

The aluminium body and rigid steel spring provide optimal balance in the release mechanism for quick exchange and robust connection.

Interchangeable

The Podium Hub supports an exchangeable Quick Release, so it is ready for future upgrades.

Disclaimer:

All warranty, RMA & technical issues with this product will be handled directly through Fanatec. We can handle these communications on your behalf or transfer the warranty over to you. Please get in contact with us if any issues arise.
