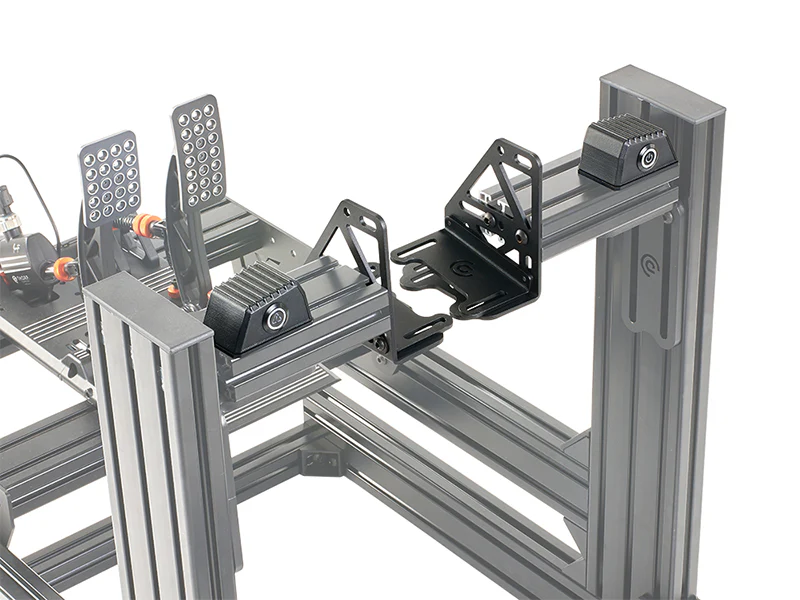

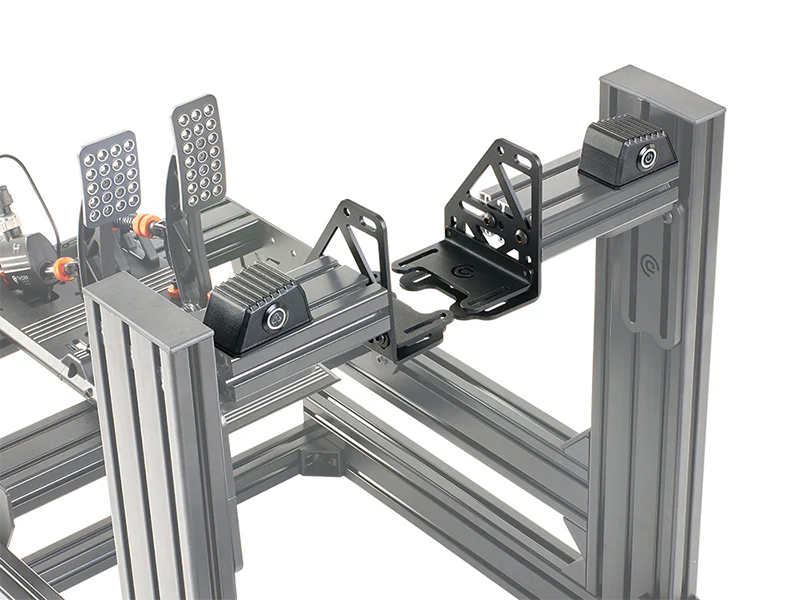

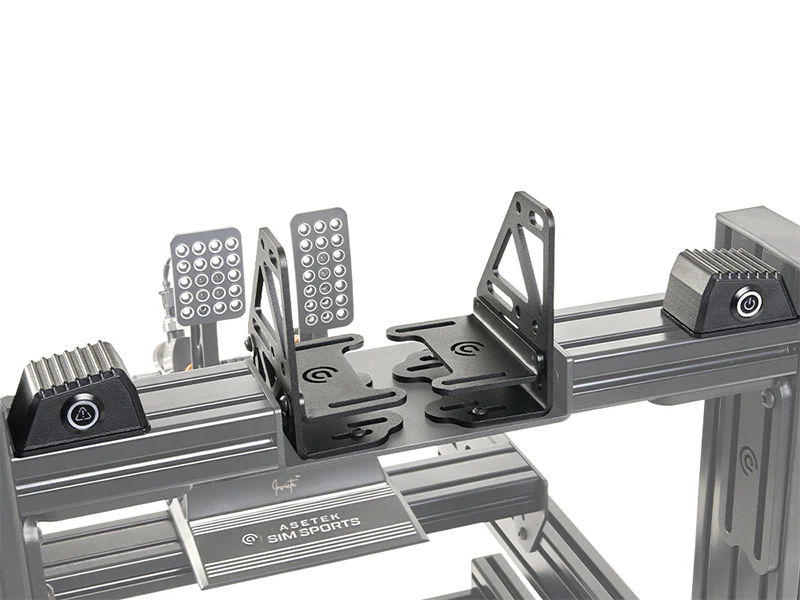

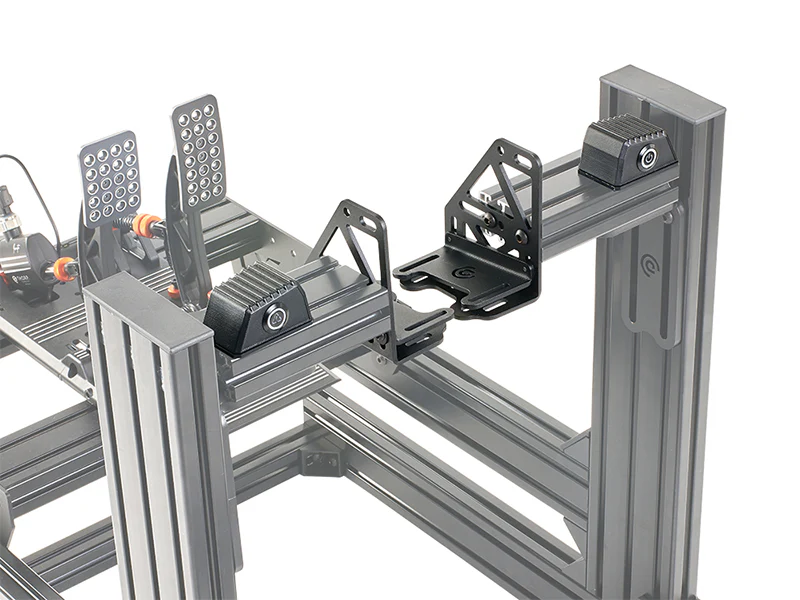

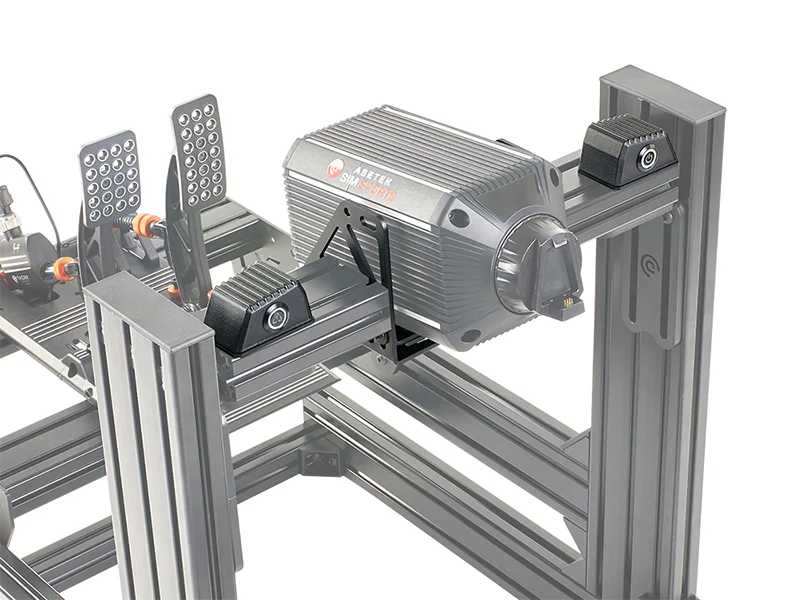

The Asetek SimSports® Wheelbase Mount is a fully adjustable mounting option for your Asetek SimSports® wheelbase.

This mounting option gives you a range of possible mounting options. The t-slots in the bottom of your wheelbase allows you to slide the wheelbase back and forth and easily angle your wheelbase up to 12.7 degrees with 4 screws; 2 on each side of the tilt bracket to find your desired racing position.

Additional information:

• Dimensions: Each mount is 120 x 75 x 48 mm
• Maximum tilt angle: 10 degrees
• Material: 4 mm laser-cut steel

Hole Pattern:

• Individual mounting on each side.
• The distance between holes on each mount is either 65 mm or 90 mm.
